Cassettes
Band galvanized or Aluzinc
It describes a roof respectively side element, which is laid via binder or uprights alternatively and supports the installation of insulating material. There are steel cassettes available that are delivered galvanized or in alu zinc.
We will provide you with the following accessories on demand:
- complete mounting material for standard fixation (acc. approval notification)
- compression stripes/thermal disconnection on the cassette bars
- complete technical service (Key plan/Object lists/Construction details/Static of cladding/Laying instructions etc.)
Optionally a plastic coating according to the approval notification of the various producers is available.
Overview cassettes/ Acoustic cassettes:
| Profile | Thickness of sheet [mm] | Available length of sheet [m] | Tables of loads | |
|---|---|---|---|---|

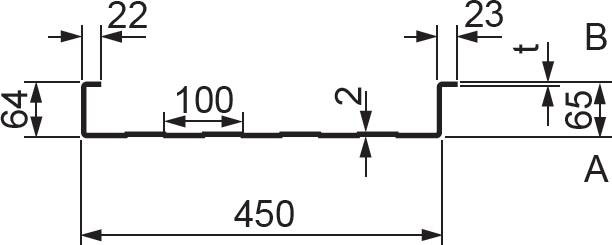

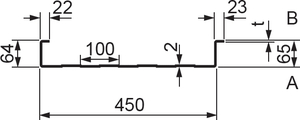

| 65/450-e |  | 0,75-1,25 | 15,00 | |

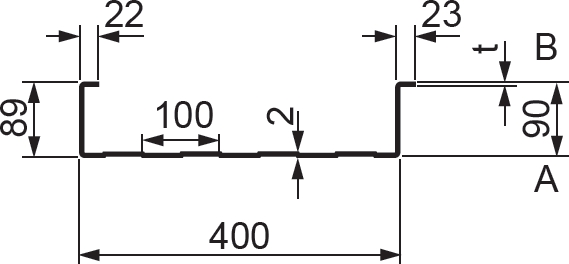

| 90/400-e |  | 0,75-1,25 | 15,00 | Cassette |

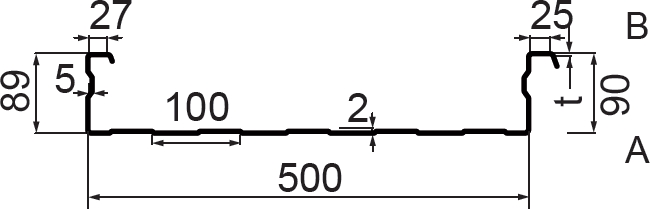

| 90/500-e |  | 0,75-1,25 | 15,00 | Cassette Acoustic version |

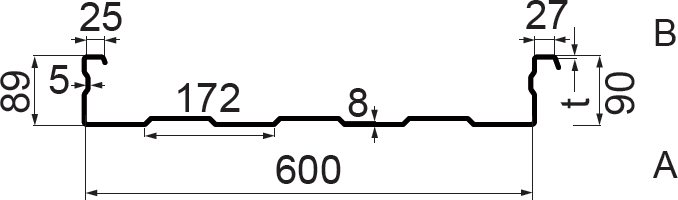

| 90/600-e |  | 0,75-1,25 | 15,00 | Cassette Acoustic version |
| 100/600-c |  | 0,75-1,50 | 15,00 | Cassette Acoustic version |

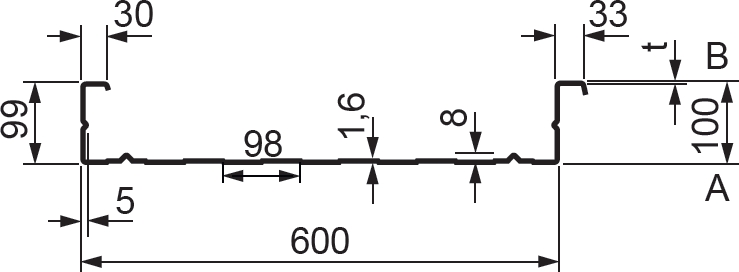

| 100/600-d |  | 0,75-1,25 | 15,00 | Cassette |

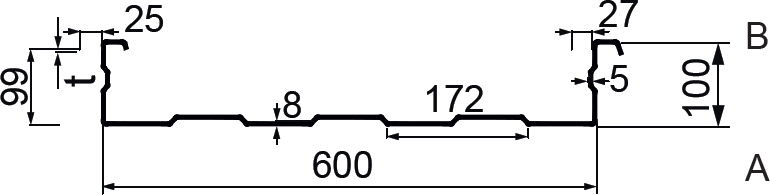

| 100/600-e |  | 0,75-1,50 | 15,00 | Cassette Acoustic version |

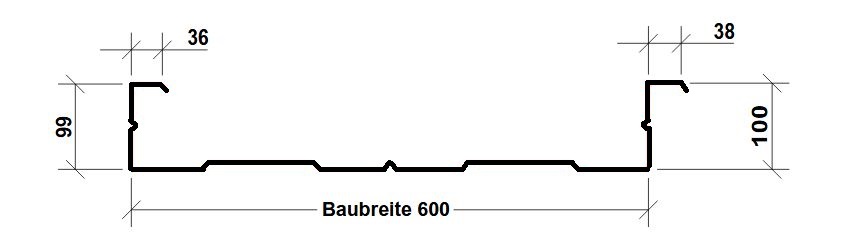

| 100/600-k |  | 0,75-1,50 | 15,00 | Cassette Acoustic version |

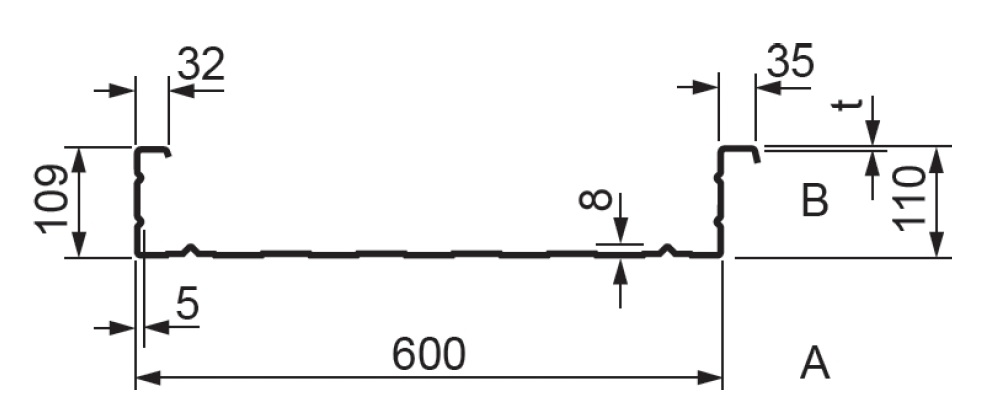

| 110/600-d |  | 0,75-1,25 | 15,00 | Cassette |

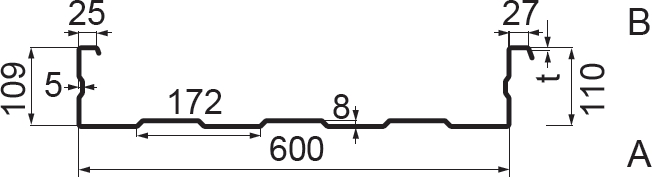

| 110/600-e |  | 0,75-1,25 | 15,00 |
|
| 120/600-c | | 0,75-1,50 | 15,00 | Cassette Acoustic version |

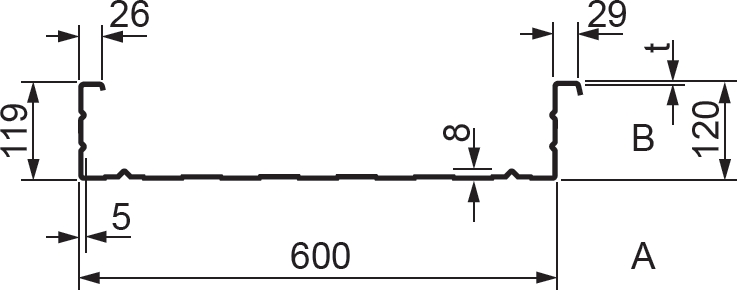

| 120/600-d |  | 0,75-1,25 | 15,00 | Cassette |

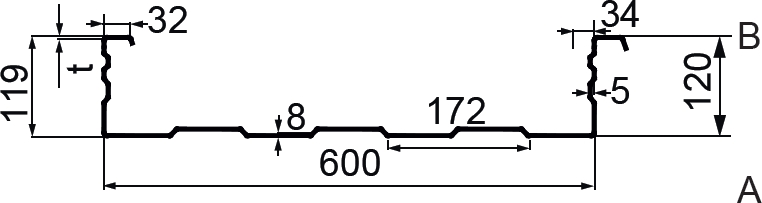

| 120/600-e |  | 0,75-1,25 | 15,00 | Cassette Acoustic version |

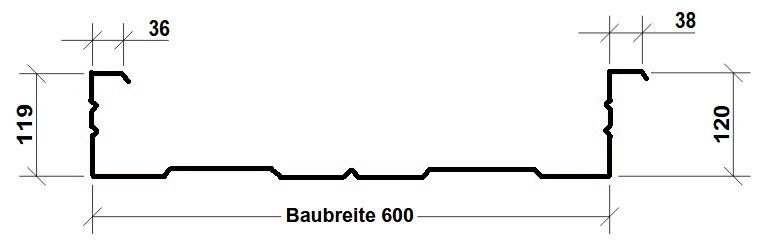

| 120/600-k |  | 0,75-1,50 | 15,00 | Cassette Acoustic version |
| 130/500-c |  | 0,75-1,50 | 15,00 | Cassette Acoustic version |

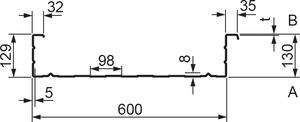

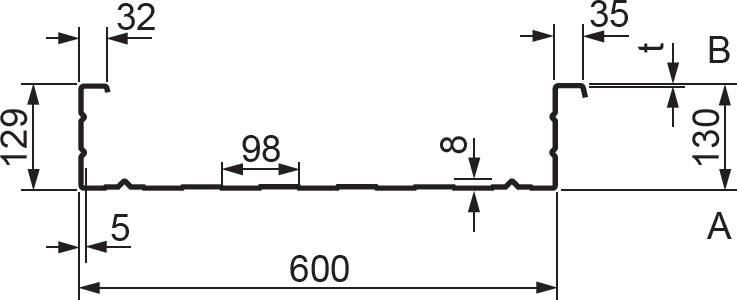

| 130/600-d |  | 0,75-1,25 | 15,00 | Cassette |

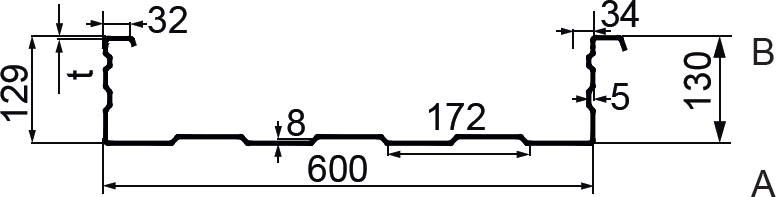

| 130/600-e |  | 0,75-1,25 | 15,00 | Cassette Acoustic version |

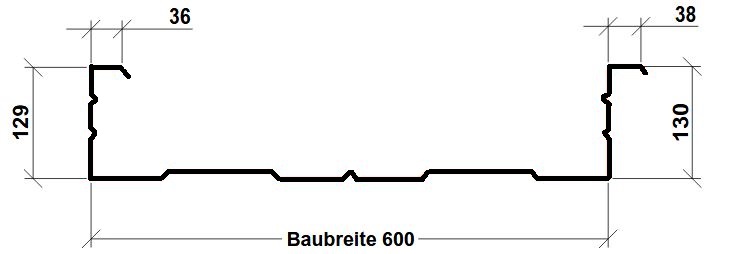

| 130/600-k |  | 0,75-1,50 | 15,00 | Cassette Acoustic version |
| 145/600-c |  | 0,75-1,50 | 15,00 | Cassette Acoustic version |

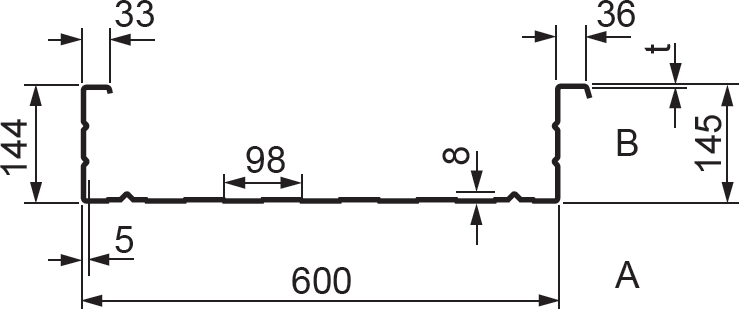

| 145/600-d |  | 0,75-1,25 | 15,00 | Cassette |

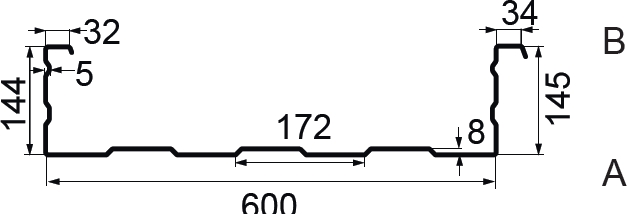

| 145/600-e |  | 0,75-1,25 | 15,00 | Cassette Acoustic version |
| 145/600-k |  | 0,75-1,50 | 15,00 | Cassette Acoustic version |
| 160/600-c |  | 0,75-1,50 | 15,00 | Cassette Acoustic version |
| 160/600-d | 0,75-1,50 | 15,00 | Cassette | |
| 160/600-e | Cassette Acoustic version | |||

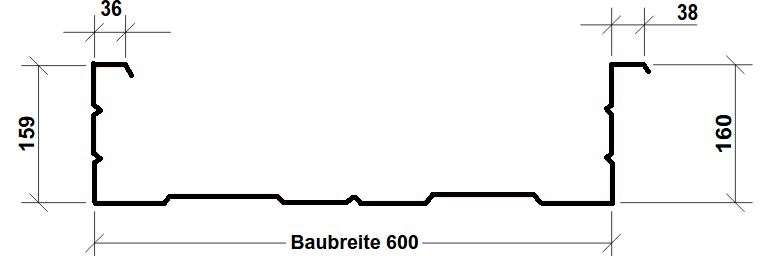

| 160/600-k |  | 0,75-1,50 | 15,00 | Cassette Acoustic version |

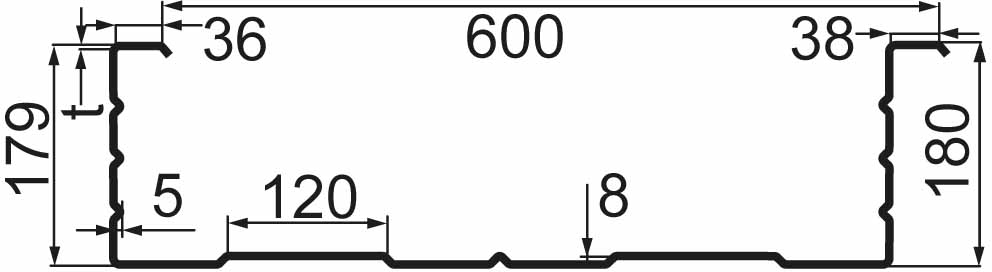

| 180/600-k |  | 0,75-1,50 | 15,00 | Cassette Acoustic cassette |

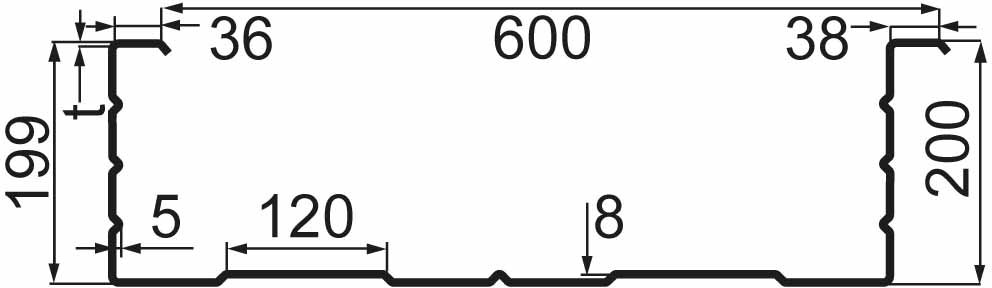

| 200/600-k |  | 0,75-1,50 | 15,00 | Cassette Acoustic cassette |
We will be pleased to provide you with individual advice based on your requirements (contact).
