EMS-ISOLIER ® Cold house panel
Element EMS-ISOLIER® Cold house panels PU
Product features:
- Inner shell- sheet thickness: 0,50 mm
- Inner shell- profiling: linied (L)
- Outer shell- profiling: lined (L)
- Max. delivery length: 20,0 m
- construction width 1176 mm standard material or 1000 mm upon request available
Technical data:
Components | Thickness d [mm] | Cover shell thickness | Weight [kg/m²] | Heat resistance R [m²K/W] | Heat transfer coefficient U [W/(m²K)] | Heat transfer coefficient U*1 [W/(m²K)] | |
outside [mm] | inside [mm] | according to EN 13165 and EN 14509 with joint influence | |||||
1. Letter = Lining outer shell / 2. Letter = Lining innershell | |||||||
PU 40 | 40 | 0,60 | 0,50 | 10,8 | 1,60 | 0,58 | 0,56 |
PU 60 | 60 | 0,60 | 0,50 | 11,6 | 2,45 | 0,39 | 0,38 |
PU 80 | 80 | 0,60 | 0,50 | 12,4 | 3,25 | 0,29 | 0,29 |
PU 100 | 100 | 0,60 | 0,50 | 13,2 | 4,10 | 0,24 | 0,23 |
PU 120 | 120 | 0,60 | 0,50 | 14,0 | 4,95 | 0,20 | 0,20 |
PU 140 | 140 | 0,60 | 0,50 | 14,8 | 5,75 | 0,17 | 0,17 |
PU 150 | 150 | 0,60 | 0,50 | 15,2 | 6,20 | 0,16 | 0,16 |
PU 170 | 170 | 0,60 | 0,50 | 16,0 | 7,00 | 0,14 | 0,14 |
PU 200 | 200 | 0,60 | 0,50 | 16,8 | 8,25 | 0,12 | 0,12 |
PU 220 | 220 | 0,60 | 0,50 | 17,6 | 9,10 | 0,11 | 0,11 |
Element EMS-ISOLIER® Cold house panels PU FW
Product features:
- Inner shell- sheet thickness: 0,50 mm
- Inner shell- profiling: lined (L), V-profiled (V), even (E) upon request
- Outer shell- profiling: lined (L), even (E) upon request
- Max. delivery length: 20,0 m

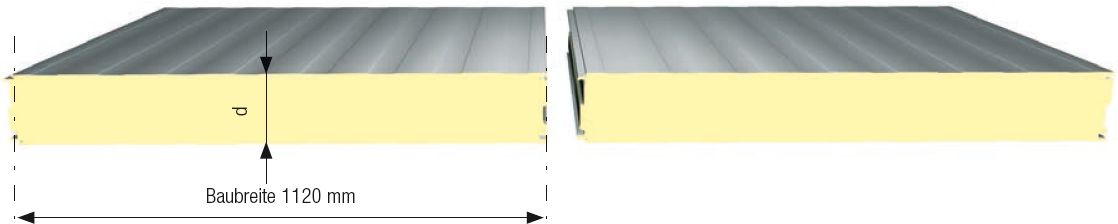

- construction width 1120 mm
Technical data:
Components | Thickness d [mm] | Cover shell thickness | Weight [kg/m²] | Heat resistance R [m²K/W] | Heat transfer coefficient U [W/(m²K)] | Wärme- durchgangs- koeffizient U*1 [W/(m²K)] | |
outside [mm] | inside [mm] | according to EN 13165 and EN 14509 incl. joint influence | |||||
1. Letter = Lining outer shell / 2. Letter = Lining innershell | |||||||
PU FW 100 | 100 | 0,60 | 0,50 | 13,2 | 4,10 | 0,24 | 0,23 |
PU FW 150 | 150 | 0,60 | 0,50 | 15,2 | 6,20 | 0,16 | 0,16 |
PU FW 200 | 200 | 0,60 | 0,50 | 16,8 | 8,25 | 0,12 | 0,12 |
We will be pleased to provide you with individual advice based on your requirements (contact).
