Isorock® vario (concealed fastening)

Product features:

  • sheet thickness: 0,50 mm and 0,75 mm
  • Inner shell: lined (L), even (E) upon request
  • Outer shell: lined (L), V-profiled (V), microprofiled (M), even (E) upon request
  • assessed sound insulating value Rw : 32dB
  • delivery length until 12,0 m and 16,0 m per element thickness (see technical data)

Product preview:

Diese Abbildung zeigt das Paneel Hoesch Isorock Vario.
Element Isorock Vario

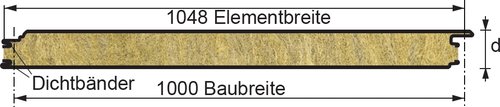

Die Abbildung zeigt den Querschnitt des Paneels Isorock Vario.
Element Isorock Vario
Diese Abbildung zeigt die Fugengeometrie des Paneels Hoesch isorock® Vario.
Joint geometry (detailed preview)

Technical data for type S1: non-flammable mineral wool filling incl. a density of 100 kg/m³

ComponentsThickness d [mm]
Cover shell thickness

max. delivery length
Weight [kg/m²]Heat resistance R [m²K/W]Heat transfer coefficient
U [W/(m²K)]
outside
[mm]		inside
[mm]		according to  EN 13162 and
EN 14509 with joint influence
S1 80800,50
0,75		0,50
0,75		16,0
16,0		16,9
21,4		1,800,55
S1 1001000,50
0,75		0,50
0,75		16,0
16,0		18,9
23,4		2,300,44
S1 1201200,50
0,75		0,50
0,75		16,0
15,7		20,9
25,4		2,750,36
S1 1501500,50
0,75		0,50
0,75		16,0
14,0		23,9
28,4		3,450,29
S1 1751750,50
0,75		0,50
0,75		16,0
12,9		26,2
30,7		4,050,25
S1 2002000,50
0,75		0,50
0,75		13,8
12,0		28,9
33,4		4,600,22
1. letter= profiling outer shell/ 2. letter= profiling inner shell

Technical data for type S2: non-flammable mineral wool filling incl. density of 125 kg/m³

ComponentsThickness
d [mm]
Cover shell thickness

max. delivery length
Weight
[kg/m²]		Heat resistance R [m²K/W]Heat transfer coefficient
U [W/(m²K)]
outside
[mm]		inside
[mm]		according to EN 13162 and
EN 14509 incl. joint influence
800,50
0,75		0,50
0,75		16,0
16,0		18,8
23,3		1,700,58
S2 1001000,50
0,75		0,50
0,75		16,0
15,5		21,3
25,3		2,150,46
S2 1201200,50
0,75		0,50
0,75		16,0
14,1		23,8
28,3		2,550,38
S2 1501500,50
0,75		0,50
0,75		14,5
12,4		27,4
31,9		3,200,31
S2 175*1750,50
0,75		0,50
0,75		13,0
11,3		30,5
35,0		3,750,27
S2 200*2000,50
0,75		0,50
0,75		11,8
10,4		33,6
38,1		4,300,23
*=  currently not authorized, applied for authorization

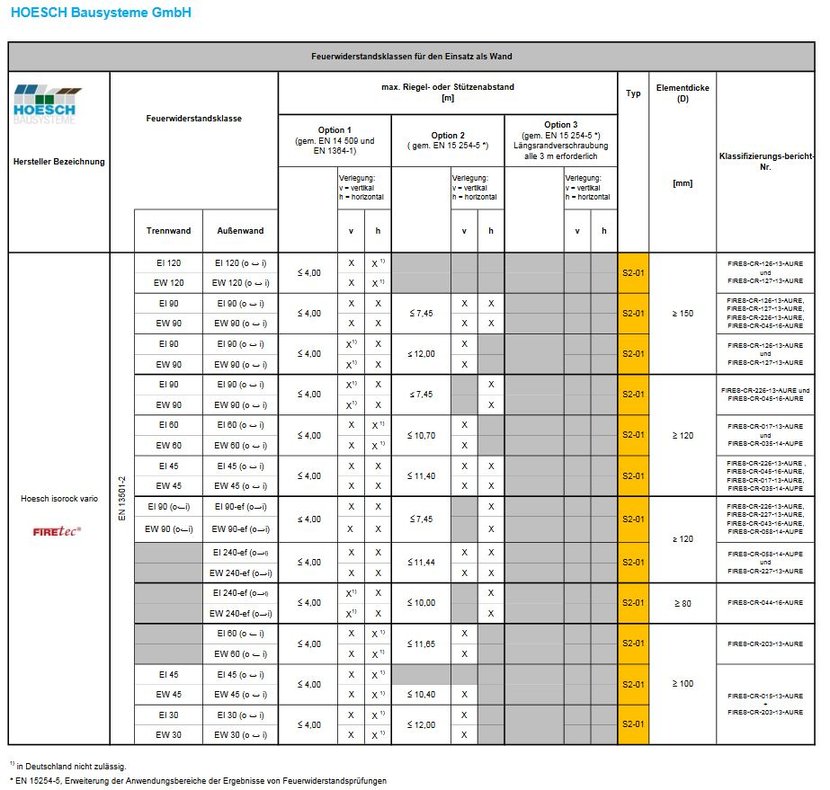

Fire-resistance classes Hoesch isorock vario application as wall

PDF: Fire-resistance classes Isorock vario

Cover shell profiling:



We will be pleased to provide you with individual advice based on your requirements (contact).
