Trapezoidal sheet aluminium

Trapezoidal sheets aluminium

These mounting elements are available in design blanc-rolled, stucco or plastic coated. On your special desire we are able to deliver the trapezoidal sheet with anti condensate coating. Some of the profiles could also be delivered made of stainless steel.

You will find the technical data for each type of sheet in our brochures. Please be informed that the values for loading correspond to the latest technical status. Unfortunately we cannot take any responsibility for probably occurring changes. Therefore, please ask for our detailed technical documentation in case of need. Should you require any special information, please do not hesitate to contact us at any time.

We kindly inform you that the profiles are produced by different manufacturers and therefore deviations of dimentions and loads can occur.

Please note that the profile value mentioned in our following survey is considered for roof width per meter. The letters A and B or rather the declaration "positive/negative" are specifications to indicate the side to be coated.

Trapezoidal sheet aluminium - overview

ProfileAvailable sheet thickness
[mm]
Table of loads
19/1050,70
0,80
1,00
20/125
in 1000 mm Baubreite
0,50
0,70
0,80
1,00
1,20
20/125
in 1125 mm
Baubreite
0,70
0,80
1,00
20/154

0,50
0,70
0,80
1,00

Positivlage

Negativlage

26/1430,70
0,80
1,00

Positivlage

Negativlage

29/1240,50
0,60
0,70
0,80
1,00
1,20

Positivlage

Negativlage

30 KD0,70
0,80
1,00
Positivlage
30/1530,50
0,70
0,80
1,00
1,20

Positivlage

Negativlage

30/1670,50
0,70
0,80
1,00
1,20

Positivlage

Negativlage

30/2210,50
0,70
0,80
1,00
1,20

Positivlage

Negativlage

35/2070,50
0,70
0,80
1,00
1,20
Positivlage
40/1670,50
0,70
0,80
1,00
Positiv- und Negativlage
40/1830,70
0,80
1,00
1,20

Positivlage

Negativlage

40/1850,70
0,80
1,00
1,20

Positivlage

Negativlage

41/193,50,70
0,80
1,20

Positivlage

Negativlage

42/2500,50
0,70
0,80
1,00
1,20

Positivlage

Negativlage

44/3330,70
0,80
1,20
Negativlage
45/150,25*0,70
0,80
1,00
1,20

Positivlage

Negativlage

45/150,55*0,70
0,80
1,00
1,20

Positivlage

Negativlage

45/2000,70
0,80
1,00

Positivlage

Negativlage



45/333

0,70
0,80
1,00
Positivlage
50/2500,70
0,80
1,00
1,20
Negativlage
58 KD0,70
0,80
1,00
Positivlage

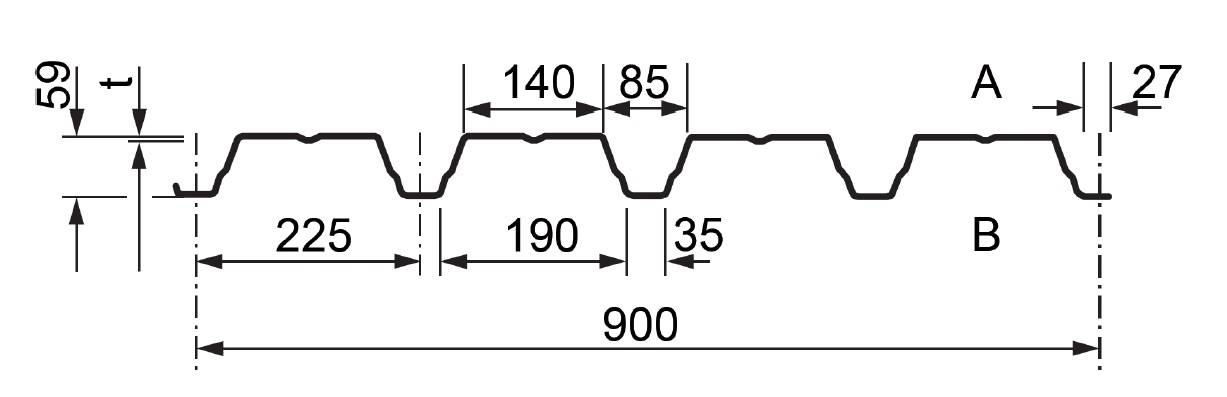

59/225

0,70
0,80
1,00

Positivlage

Negativlage

80/2770,70
0,80
1,00

Positivlage

Negativlage

89/305 (nur auf Anfrage)0,70
0,80
1,00
1,20

Positivlage

Negativlage

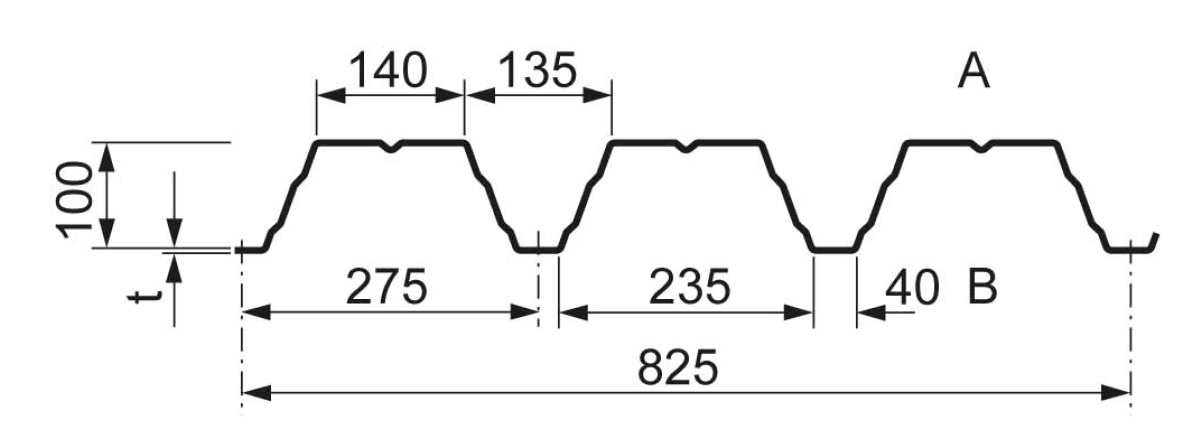

100/275 (nur auf Anfrage)0,70
0,80
1,00
1,20

Positivlage

Negativlage

*Trapezoidal profiles are also available chambered





We will be pleased to provide you with individual advice based on your requirements (contact).
