Trapezoidal sheets stainless steel

Trapezoidal sheets stainless steel

These component parts are trapezoidal sheets that are made of stainless steel. Stainless steel is generally available in quality 1.4301 and  as well as 1.4401 in the version bright rolled. These qualities are exclusively deliverable in 2B-finish and are equipped with protection foil on both sides. They comply with standard of EN10088-0 and EN10259. We are capable to deliver UGIBRIGHT® in quality 1.4526, which is a very shiny and homogenous surface.

We deliver trapezoidal sheets in a perforated version, if you require. You will find the technical data for each type of sheet in our brochures. Please be informed that the load tables correspond to the latest technical status. Unfortunately we cannot take any responsibility for probable occurring changes. Therefore, please ask for our detailed technical documentation in case of need. Should you require any special information, please do not hesitate to contact us.

Please note that the profile values mentioned in the following survey is considered for roof width per meter. The letters A and B or rather the declaration "positive/negative" are specifications to indicate the side which is to be coated.

Trapezoidal sheets stainless steel

ProfileAvailable sheet length [m]Available sheet length [mm]Table of loads

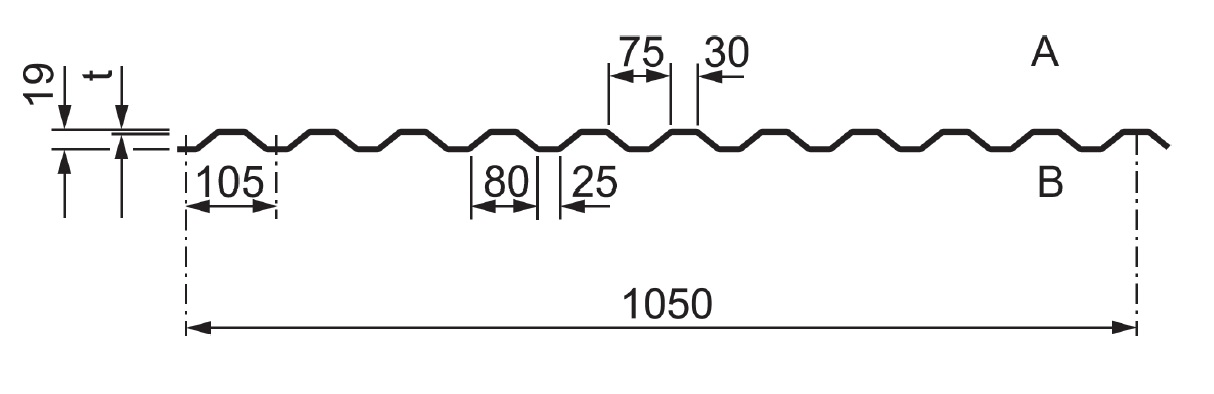

19/10512

0,70
0,80

upon request
20/15418

0,80

upon request

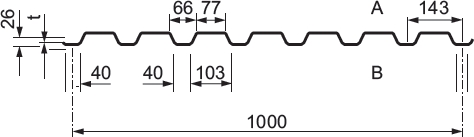

26/143180,80upon request

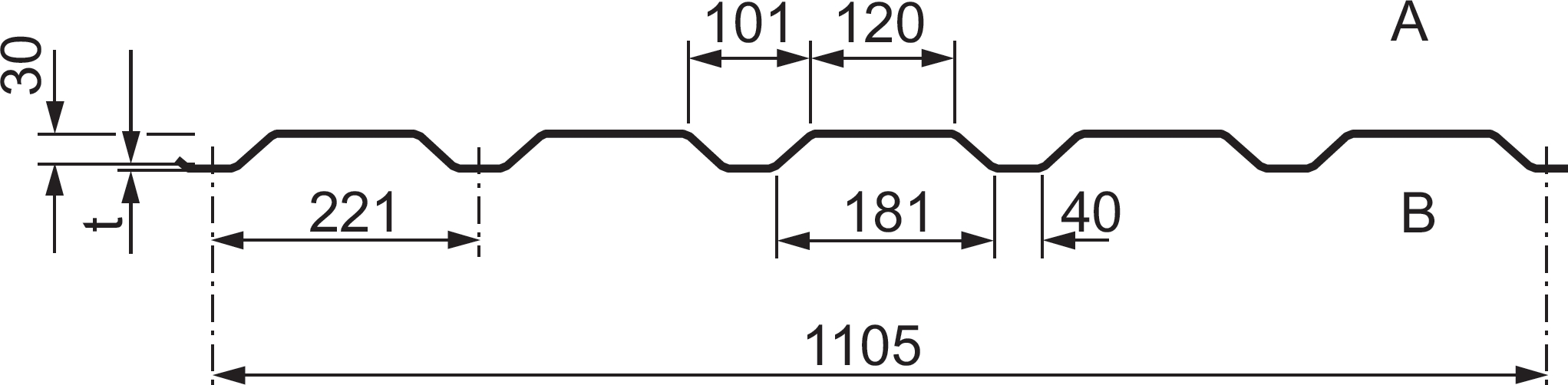

30/221

150,80upon request
35/207



180,80upon request

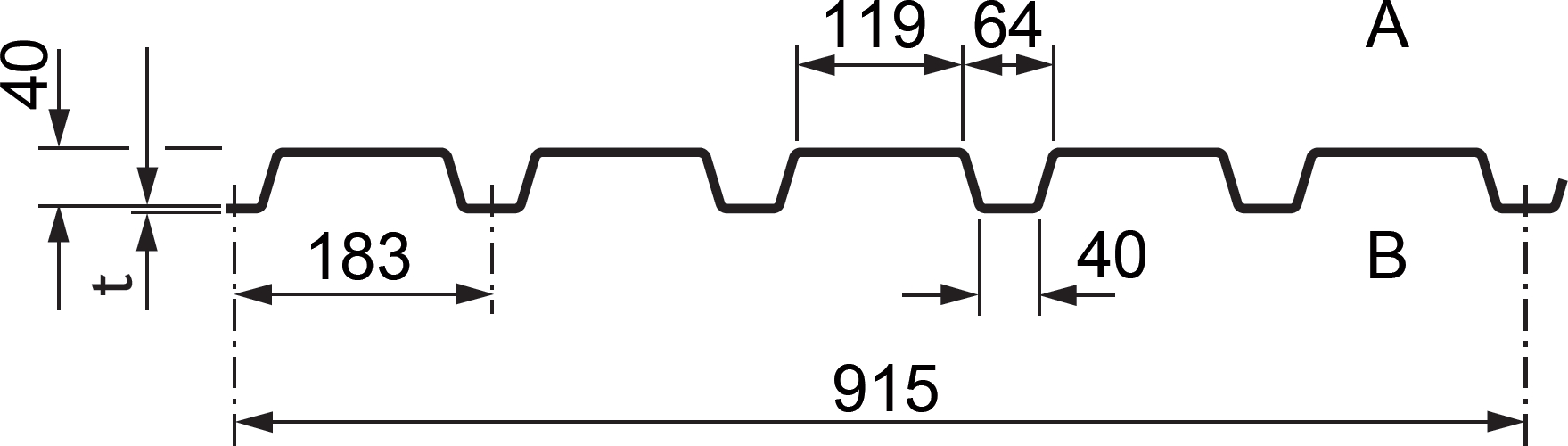

40/183

180,80upon request

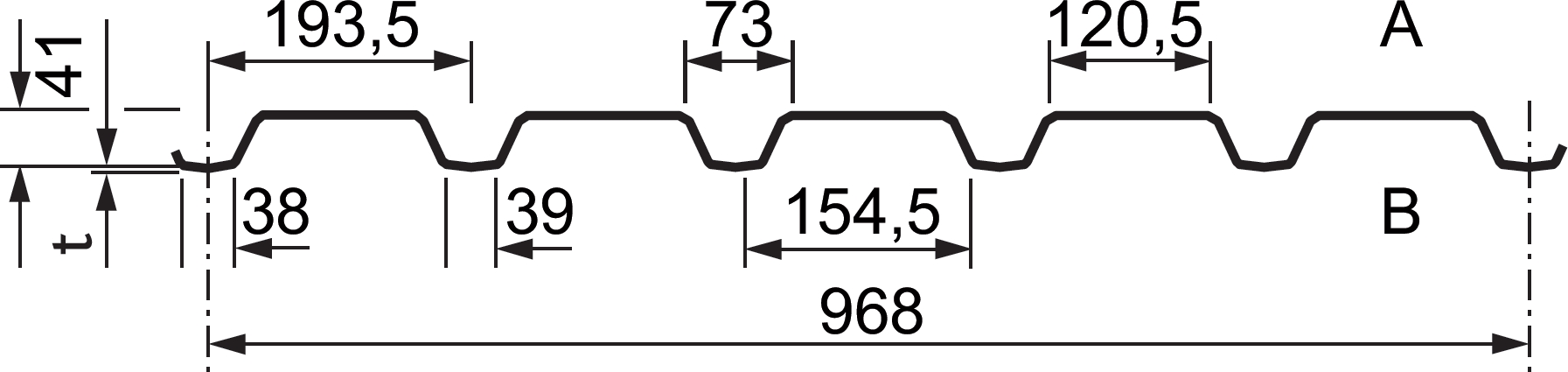

41/193,5

180,80upon request
44/333

180,80upon request

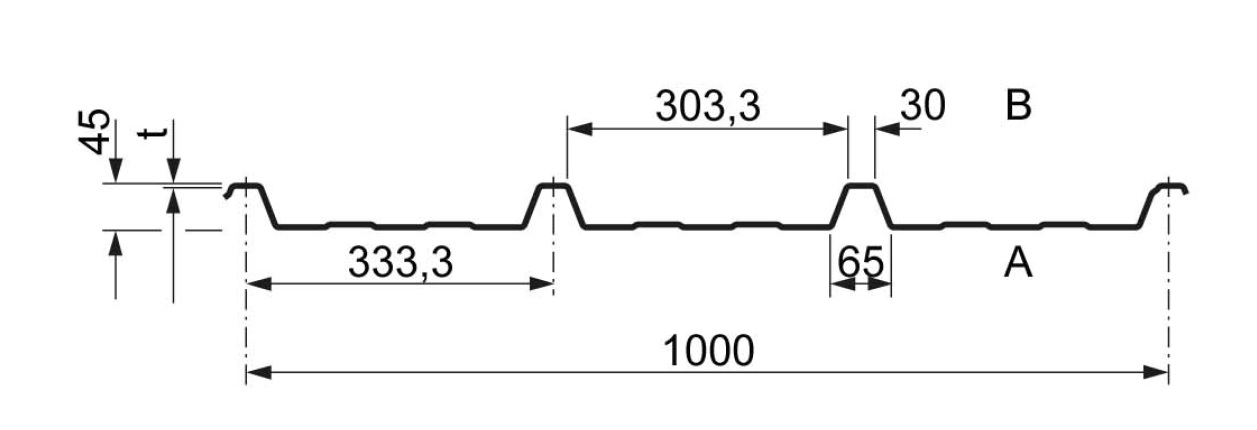

45/33312

0,70
0,80

upon request
50/25018

0,70
0,80

upon request

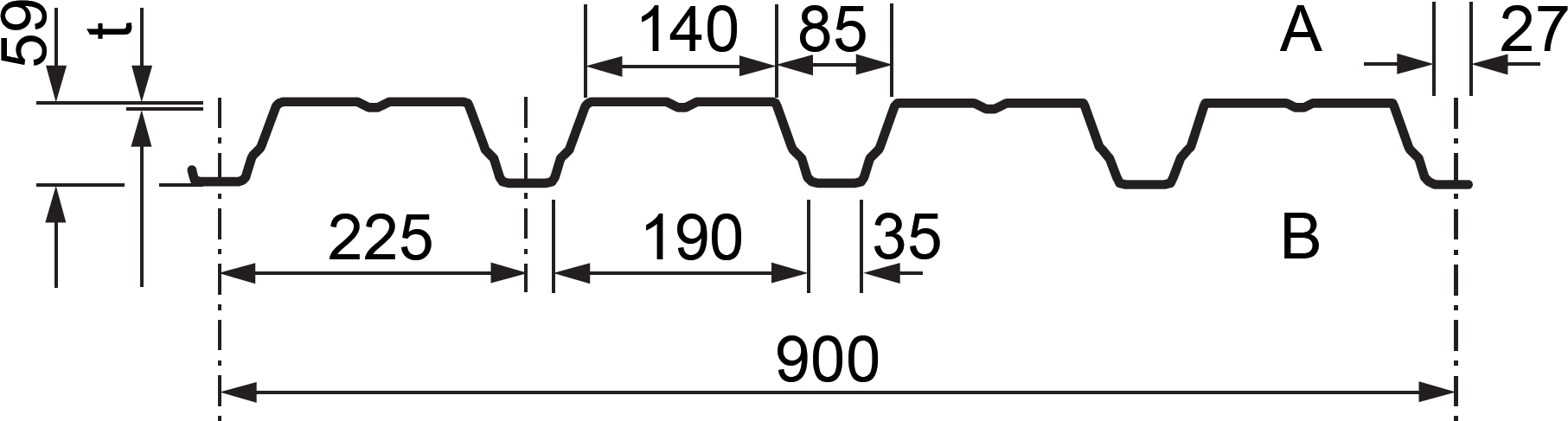

59/225

180,80upon request

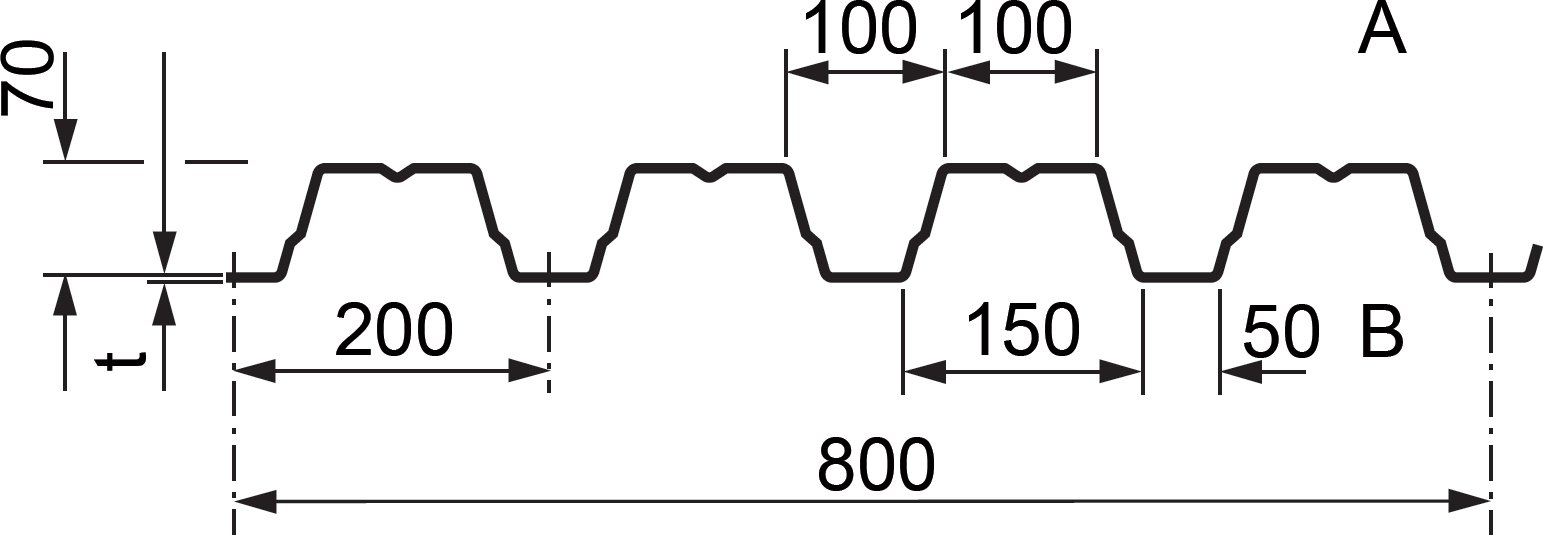

70/20020

0,70
0,80

upon request
80/277

180,80upon request
Trapezoidal sheets with different profiles are available depending on its quantity upon request.

We will be pleased to provide you with individual advice based on your requirements (contact).
