Special profiles

These construction elements are available in steel as well as in a plastic coated design.
Regarding to panning and constructing users technical key figures connected to the single types of trapezoidal sheets are listed in our brochures.

Please be informed that the strain tables correspond to the latest technical status. Unfortunately we cannot take any responsibility for probable occurring changes. Therefore, please ask for our detailed technical documentation when needed. Should you require any special information, please do not hesitate to contact us.

Please note that the profile value mentioned in the following survey is considered for roof width per meter. The letters A and B or rather the declaration "positive/negative" are specifications to indicate the side to be coated.


Detailed preview:

ProfileAvailable sheet
length
[m]
Available
sheet
thickness
[mm]
9/10230,63-1,50
20/8030,63-1,50
MF
7-8/1148
40,70
0,80
MF
7-11/1135
40,70
0,80
MF
25-6/1050
40,70
0,80
MF
25-8/985
40,70
0,80

MONTAFORM®:

ProfileSheet
thickness
[mm]
metal sheet
dead weight
[kg/m²]
Product
preview
MONTAFORM®
MF 7-8/1148
0,70
0,80
5,95
6,80
MONTAFORM®
 MF 7-11/1135
0,70
0,80

6,02
6,88

MONTAFORM® MF 25-6/10500,70
0,80
6,67
7,62
MONTAFORM® MF 25-8/9850,70
0,80
7,11
8,12

Pagoda and pyramids:

ProfileSteel

Aluminium

Available
sheet
length
[mm]
Sheet weight
[kg/m²]
Available
sheet
length
[mm]
Sheet
weight
[kg/m²]
Pyramid 37/460*0,75
0,88
8,00
9,39
0,80
1,00
2,99
3,74
Pyramid 37/510*0,75
0,88
8,00
9,39
0,80
1,00
2,99
3,74
Pyramid 19/470*0,75
0,88
7,83
9,19
0,80
1,00
2,93
3,66
Pyramid 19/520*0,75
0,88
7,08
8,30
0,80
1,00
2,65
3,31
Pyramid 50/882
(504-378)*

0,75
0,88
8,33
9,78
0,80
1,00
3,12
3,90

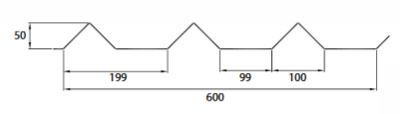

Pyramid 50/1000
(600-400)*

0,75
0,88
7,30
8,57
0,80
1,00
2,73
3,42

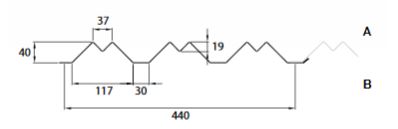

Diamond 40/440*0,75
0,88
8,36
9,81
0,80
1,00
3,13
3,91
PD 22/500*0,75
0,88
7,36
8,64
0,80
1,00
2,76
3,44

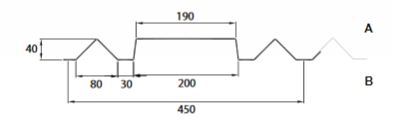

Pagode 40/450*0,75
0,88
8,18
9,59
0,80
1,00
3,06
3,83

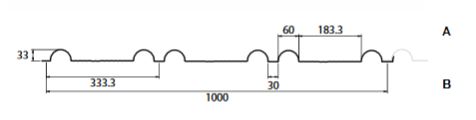

Twin 33/10000,75
0,88
7,36
8,64
0,80
1,00
2,70
3,38

*recommended maximum length: 7 m
**recommended maximum length: 12 m

We will be pleased to provide you with individual advice based on your requirements (contact).
