Hoesch - isowand® new designation: Thermowand

Product program Hoesch Wall - isowand

New product designation: Hoesch Thermowand 1120

This sandwich element is available in various cover shell options, which are offered upon request. Characteristic feature of Hoesch Thermowand 1120 is the groove tongue-joint-connection. Regarding to a good heat insulation the hard ridgid foam core consists of polyurethane.

In order to secure a corrosion protection the metallic coating GALFAN® is compatible with PLATAL® or PLADUR® band coating systems.

The longitudinal screwing is done with building approved connecting elements.

Element Thermowand LL

Product features:

Inner shell - sheet thickness: 0,40 mm
Inner shell- profiling: Lined (L)
Outer shell- profiling: Lined (L) / V-profiled (V)
Max. delivery length: 20,0 m
including construction width 1120 mm available designated Thermowand 1120

Product preview:

Hoesch Thermowand LL — Product preview: LL 40 - LL 120

Diese Abbildung zeigt die Fugengeometrie der Hoesch Thermowand — Joint geometry: LL 40 - LL 120

Technical Data:

Components	Thickness d [mm]	Cover shell thickness		Weight [kg/m²]	Heat resistance R [m²K/W]	Heat transfer coefficient U [W/(m²K)]	Heat transfer coefficient U^*1 [W/(m²K)]
Components	Thickness d [mm]	outside [mm]	inside [mm]	Weight [kg/m²]	according to EN 13165 and EN 14509 with joint influence		Heat transfer coefficient U^*1 [W/(m²K)]
LL 40	40	0,50	0,40	9,1	1,70	0,56	0,53
LL 60	60	0,50	0,40	9,9	2,55	0,38	0,37
LL 80	80	0,50	0,40	10,7	3,40	0,29	0,28
LL 100	100	0,50	0,40	11,5	4,30	0,23	0,22
LL 120	120	0,50	0,40	12,3	5,15	0,19	0,19
1. Letter = Lining outer shell/ 2. Letter = Lining Inner shell ^*1 according to EN ISO 6946

Element Hoesch Thermowand TL

Product features:

Inner shell- sheet thickness: 0,40 mm und 0,50 mm
Inner shell- profiling: lined (L)
Outer shell- profiling: trapezoidal profiled (T)
Max. delivery length: 20,0 m

Product preview:

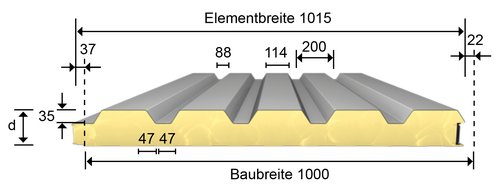

Hoesch Thermowand TL — Product preview: TL 66 - TL 129

Technical data:

Components	Thickness d [mm]	Cover shell thickness		Weight [kg/m²]	Heat resistance R [m²K/W]	Heat transfer coefficient U [W/(m²K)]	Heat transfer coefficient U^*1 [W/(m²K)]
Components	Thickness d [mm]	outside [mm]	inside [mm]	Weight [kg/m²]	according to EN 13165 and EN 14509 incl. joint influence		Heat transfer coefficient U^*1 [W/(m²K)]
TL 66	66	0,50	0,40 0,50	10,5 11,3	2,10	0,49	0,43
TL 96	96	0,50	0,40 0,50	11,6 12,5	3,50	0,30	0,27
TL 129	129	0,50	0,40 0,50	13,0 13,8	5,05	0,22	0,19
1. Letter = Lining outer shell / 2. Letter = Lining inner shell ^*1 according to EN ISO 6946

We will be pleased to provide you with individual advice based on your requirements (contact).
