Trapezoidial sheet steel
Trapezoidal profile steel, quality assured RAL - RG 617
These elements are available in galvanized, aluzinc and galvanized with additional plastic coating design. As well as these elements we are able to deliver stainless steel trapezoidal profiles.
We are able to deliver trapezoidal sheets in a perforated version, if required. You will find the technical data for each type of sheet in our brochures. Please be informed that the strain tables correspond to the latest technical status. Unfortunately we cannot take any responsibility for probable occurring changes. Therefore, please ask for our detailed technical documentation when needed. Should you require any special informations, please do not hesitate to contact us at any time.
We kindly inform that the profiles are delivered by different producers, which can cause deviations regarding dimensions and load sizes.
Please note that the profile value mentioned in the following survey is considered for roof width per meter. The letters A and B or rather the declaration "positive/negative" are specifications to indicate the page to be coated.
On the following pages detailled Informations regarding to the deliverable trapezoidal profiles are listed:
Trapezoidal sheets steel contour
Trapezoidal sheets steel available sheet length
Trapezoidal sheets steel availanle sheet thickness
Trapezoidal sheets steel load table
Trapezoidal sheets aluminium contour
Trapezoidal sheets aluminium available sheet thickness
Trapezoidal sheets aluminium available sheet length
Trapezoidal sheets aluminium load table
Trapezoidal sheet stainless steel contour
Trapezoidal sheets stainless steel available sheet length
Trapezoidal sheets stainless steel available sheet thickness
Trapezoidal sheets stainless steel load table

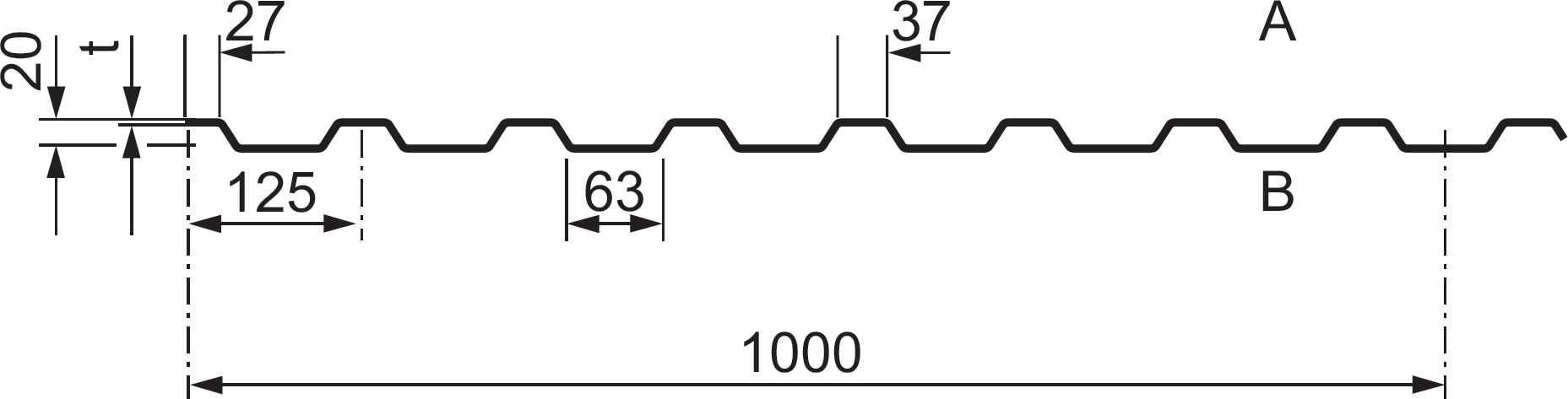

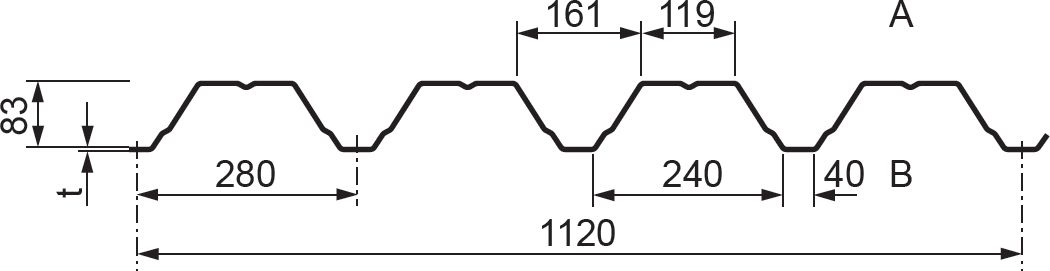

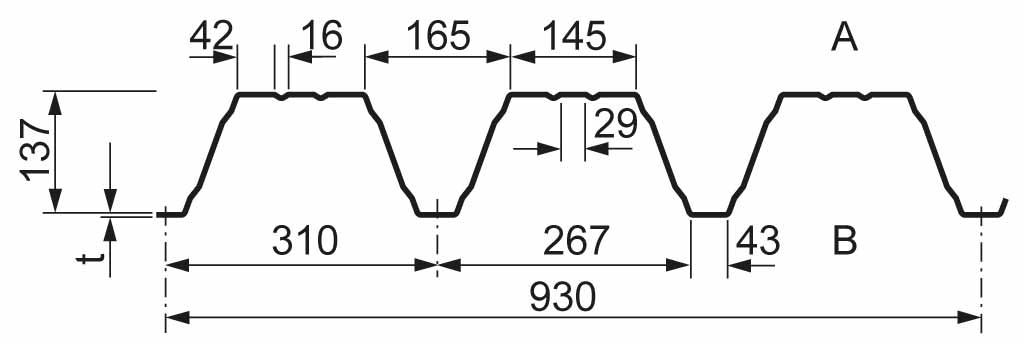

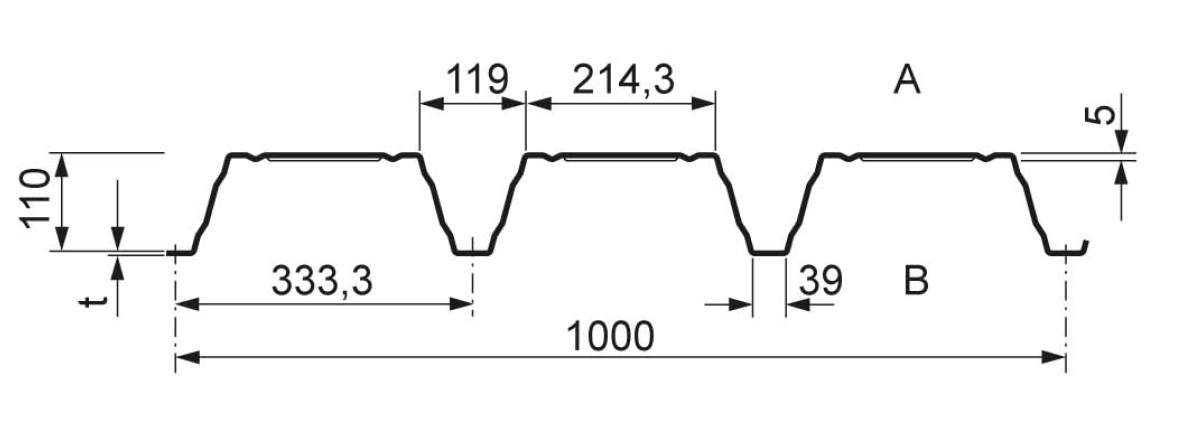

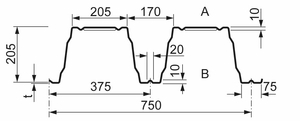

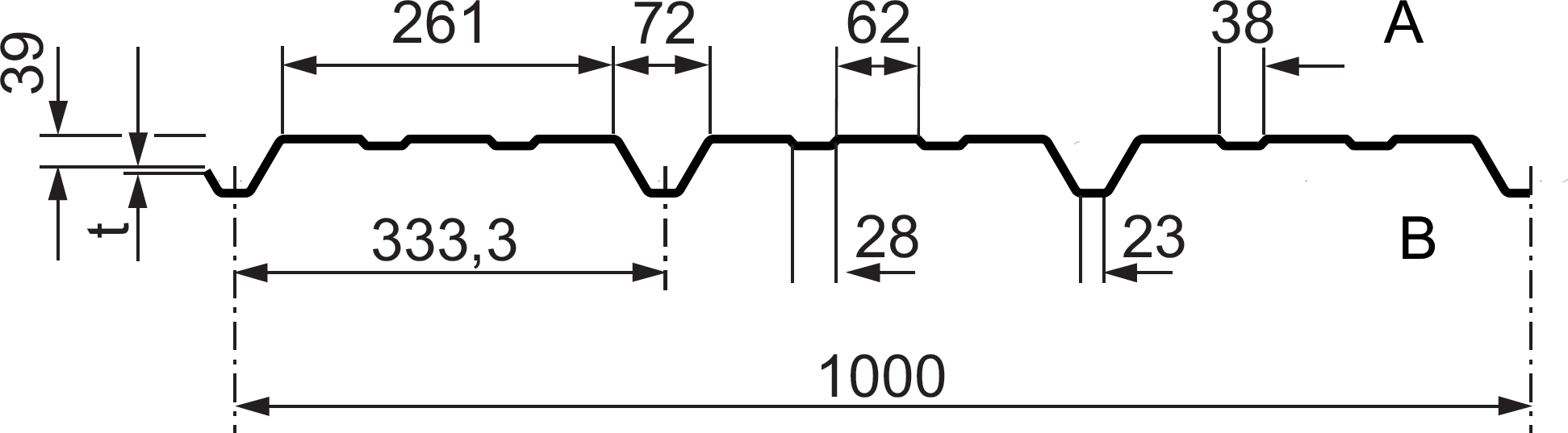

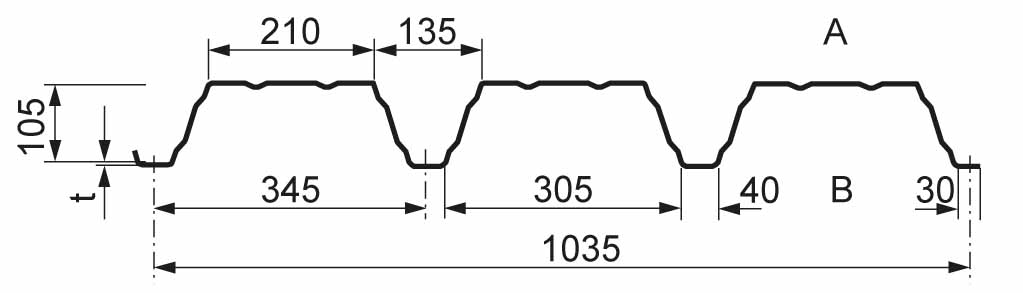

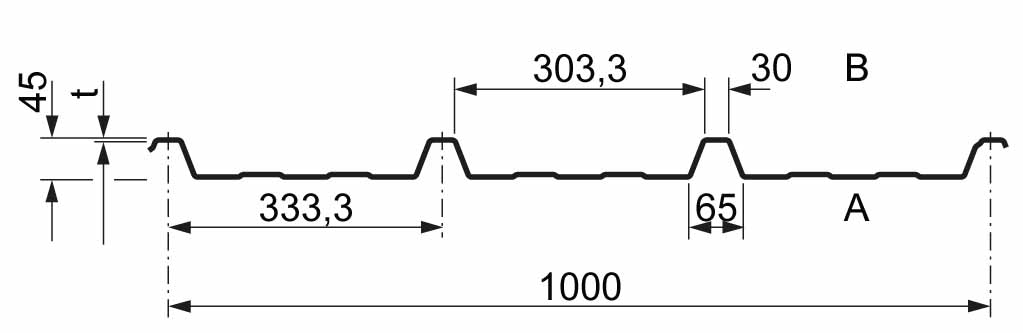

Trapezoidal sheet steel - Overview

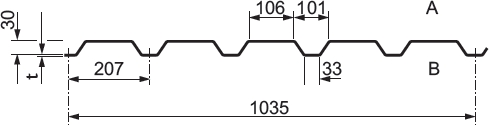

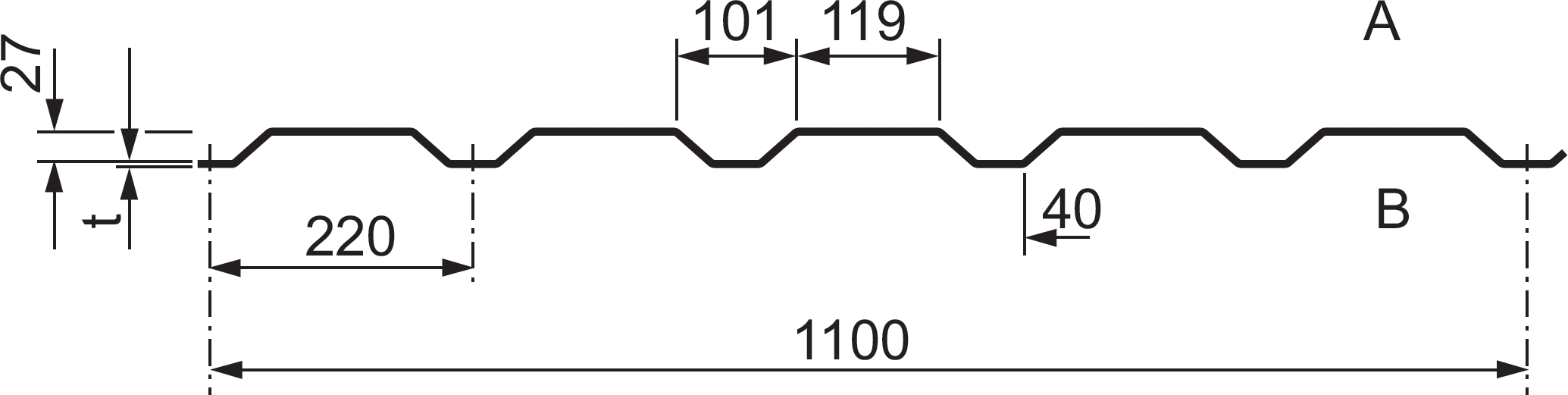

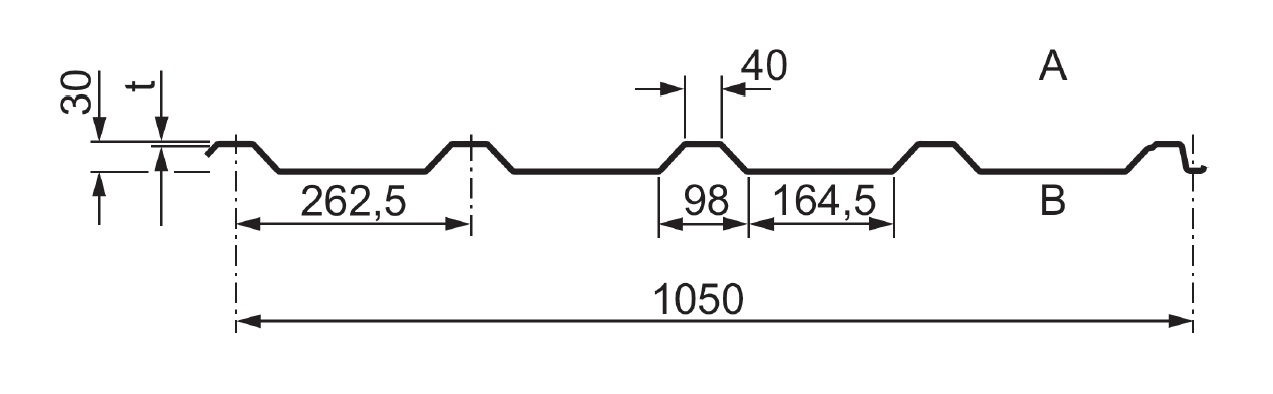

| Profile | Available sheet length [m] | Available delivery length [mm] | Table of loads | |
|---|---|---|---|---|
| 19/105 |  | 18 | 0,70-1.00 | Positivlage Negativlage |
| 20/125 |  | 18 | 0,60-0,88 | Positivlage Negativlage |
| 20/154 |  | 18 | 0,70-1,00 | |
| 26/143* |  | 18 | 0,70-1,25 | |
| 30/207 |  | 15 | 0,60-1,00 | |
| 30/220* |  | 15 | 0,63-1,50 | |
| 30 KD* |  | 15 | 0,63-1,00 |
|

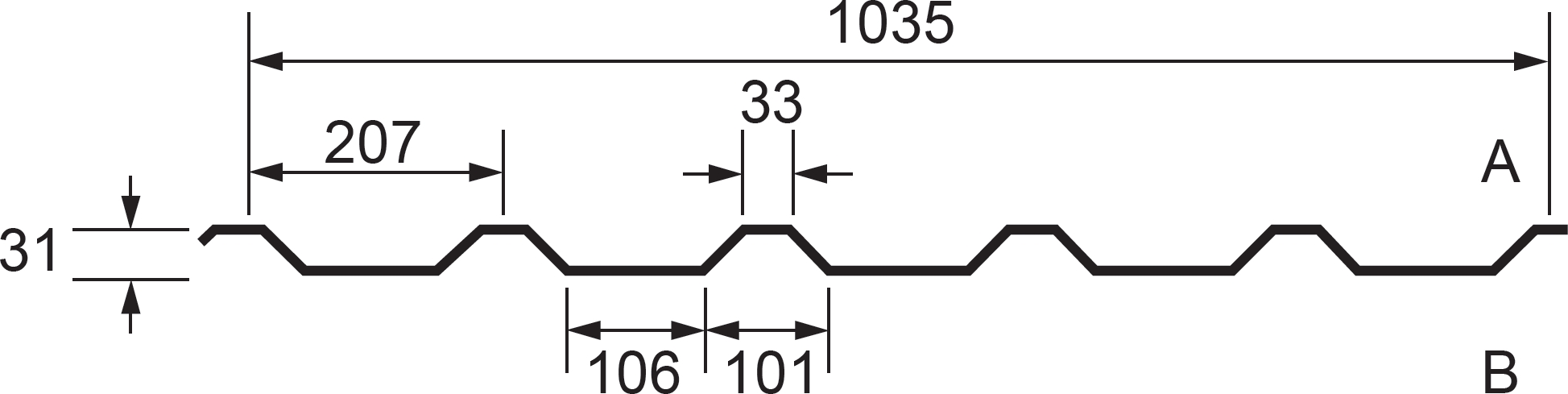

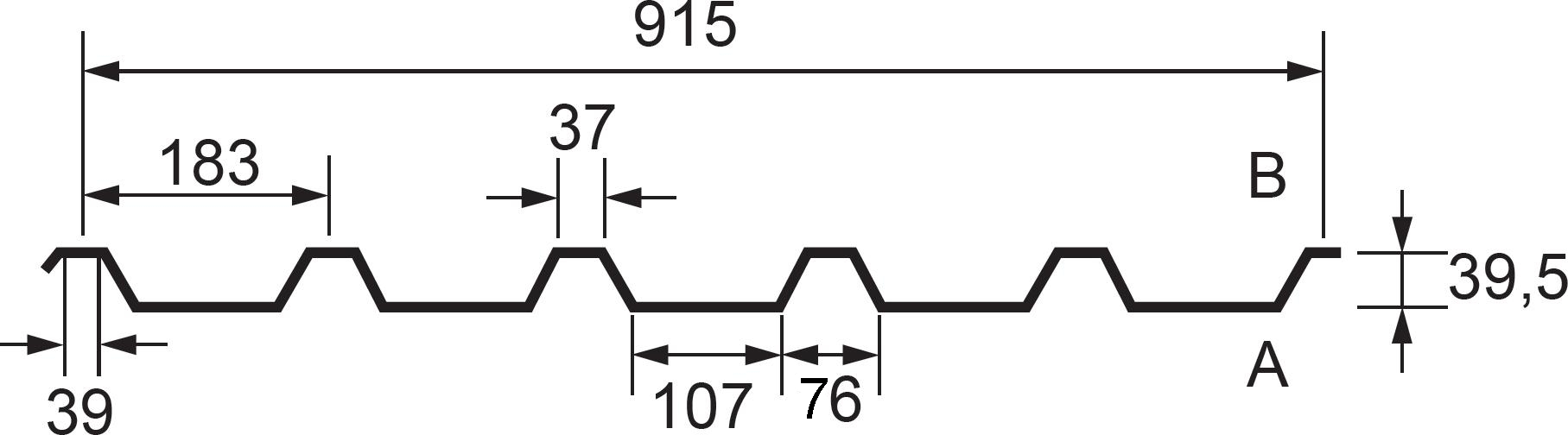

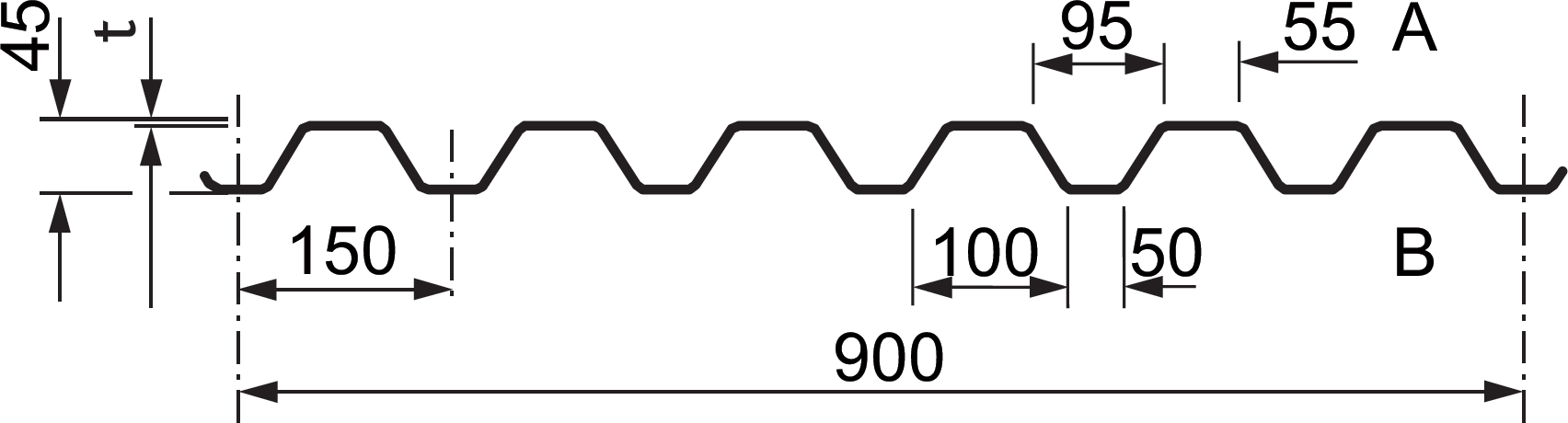

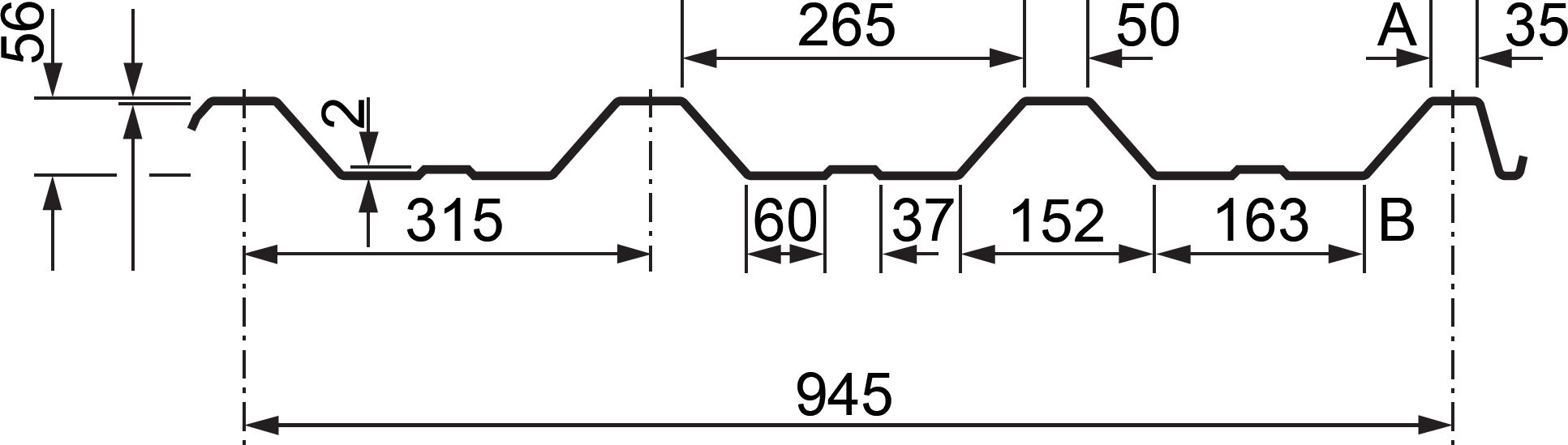

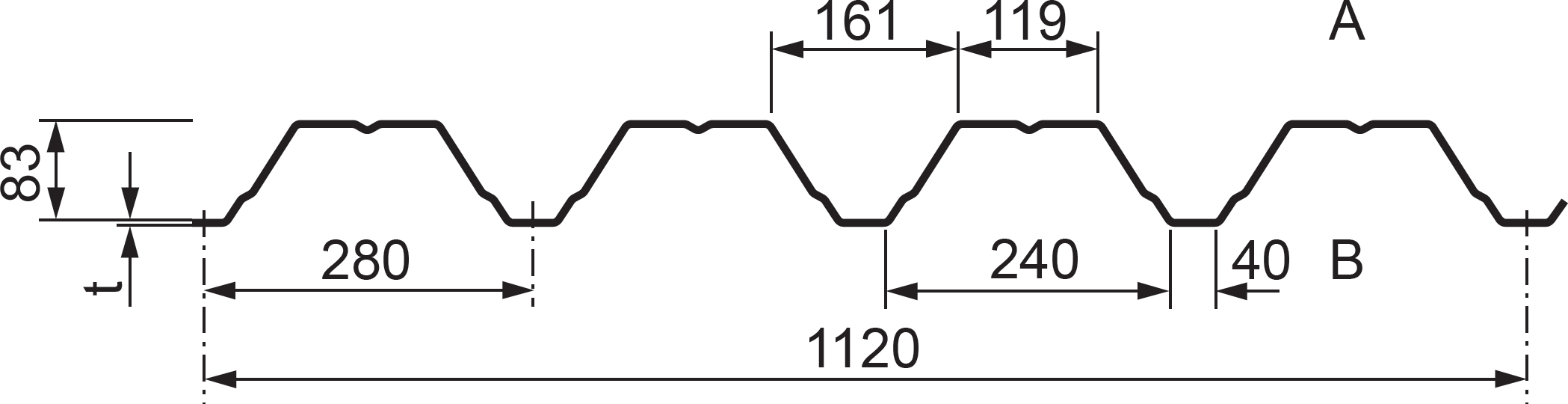

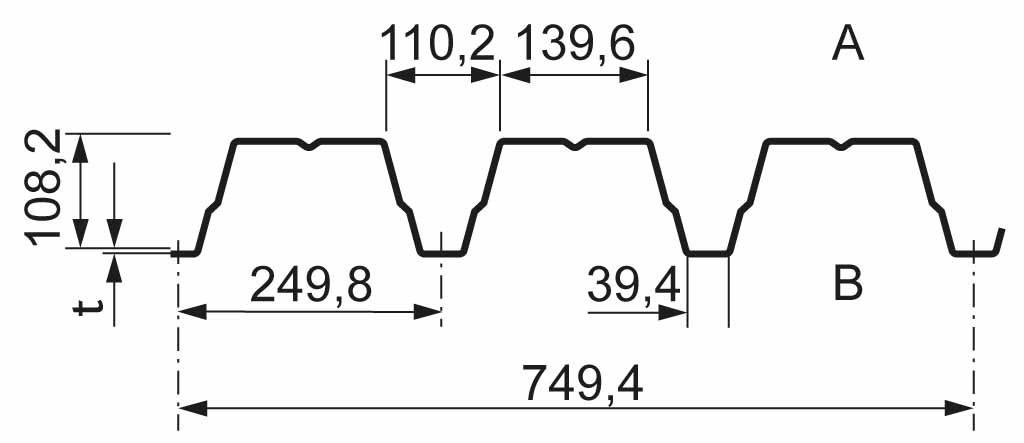

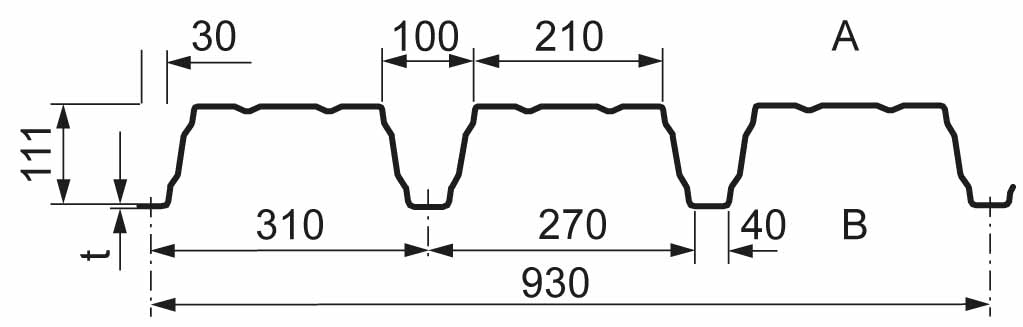

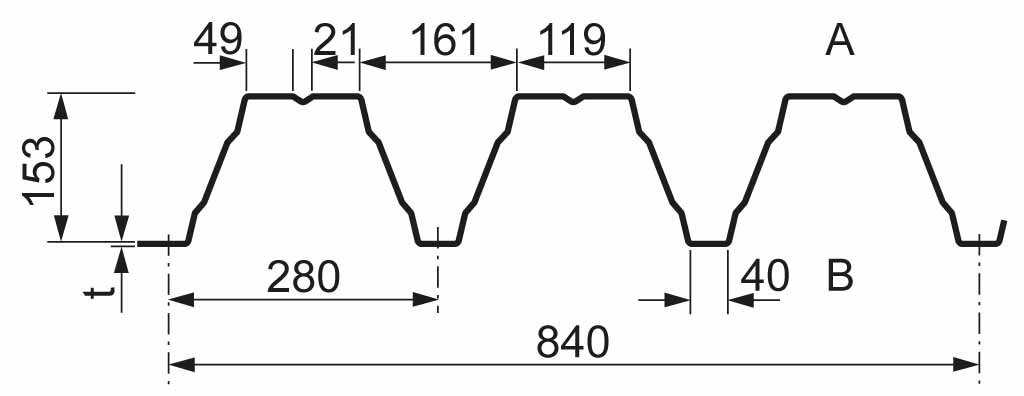

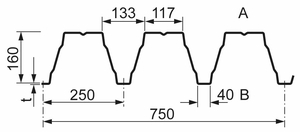

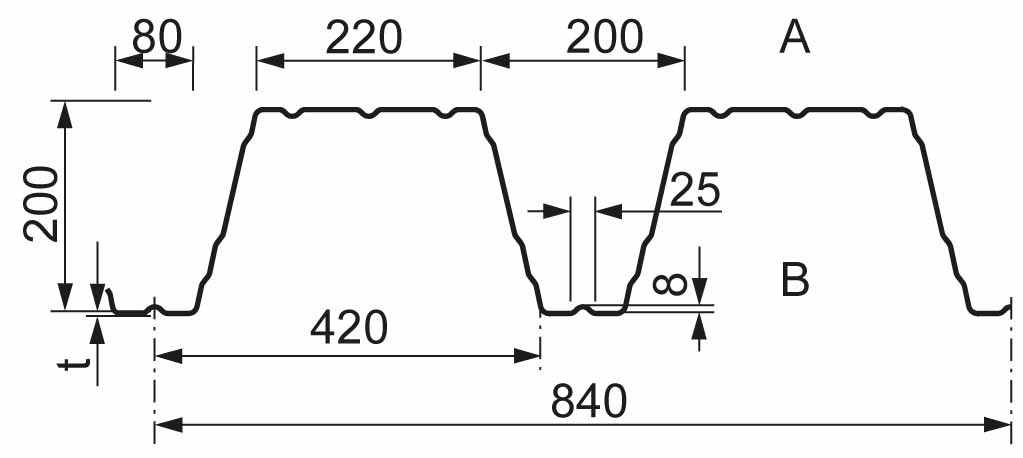

| 35/207* |  | 18 | 0,63-1,50 | |
| 35.1/207 |  | 18 | 0,75-1,25 | |
| 39/333 |  | 15 | 0,75-1,25 | |
| 40/183* |  | 18 | 0,63-1,50 | |
| 40,1/183 |  | 18 | 0,63-1,00 | |
| 41/193,5 |  | 18 | 0,70-1,25 | |
| 45/150,50* |  | 12 | 0,63-1,00 | |
| 45/150.55* |  | 18 | 0,70-1,25 | Positivlage Negativlage |
| 45/333* |
| 18 | 0,63-1,00 | Positivlage |
| 45 KD-S |
| 18 | 0,63-1,00 | Positivlage |
| 50/250* |  | 18 | 0,63-1,50 | |
| 58 KD* |  | 18 | 0,56-1,00 | Positivlage |
| 59/225* |  | 18 | 0,70-1,25 | |
| 70/200* |  | 20 | 0,75-1,50 | |
| 80/277* |  | 18 | 0,70-1,50 | |
| 85/280* |  | 24 | 0,75-1,50 | |
| 85/280-e |  | Positivlage Negativlage | ||
| 89/305* |  | 24 | 0,75-1,50 | |
| 100/275* |  | 24 | 0,75-1,50 | |
| 105/345* |  | 18 | 0,750,88-1,50 | |
| 106/250 |  | 24 | 0,75-1,50 | |
| 110/333 |  | 20 | 0,75-1,50 | |
| 111/310 |  | 18 | 0,75 | |
| 135/310 |  | 24 | 0,75-1,50 | |
| 153/280 |  | 24 | 0,75-1,50 | |
| 160/250 |  | 24 | 0,75-1,50 | |
| TRP 200 |  | 24 | 0,75-1,50 | Positivlage |
| 200/375 |  | 22,50 | 0,75-1,50 | |
| 200/420 |  | 27,00 | 0,75-1,50 | Positivlage |
| * Trapezoidal sheet aluminium also available | ||||
We will be pleased to provide you with individual advice based on your requirements (contact).
